Hip - Femoral Head avascular necrosis
Anatomy of the proximal femur including the head, neck and trochanters

Definition

Also called osteonecrosis of the hip, avascular necrosis of the hip refers to the death (necrosis) of the hipbone or femoral head, when blood supply to the bone is severely compromised. This causes initial degeneration and ultimate collapse of the femoral head.

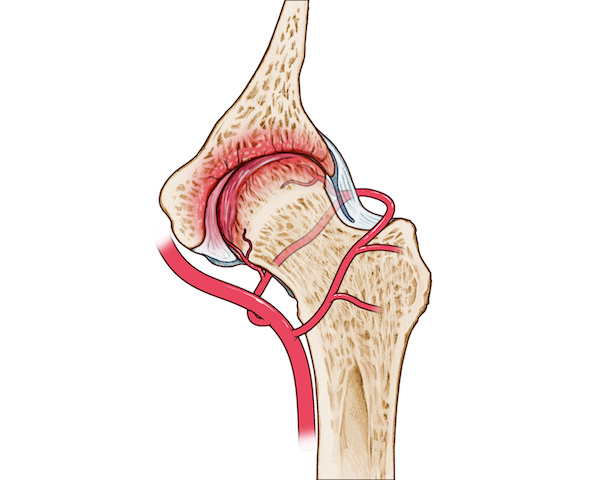

Image of a femoral head with avascular necrosis

Pathology

The bone is a live tissue highly vascularised and constantly renewing itself.

Avascular necrosis of the hip consists in the partial or total blockage of blood supply to the hipbone or femoral head due to the damage to the vessels arising from the femoral neck.

When this occurs the hipbone is deprived of oxygen and minerals and gradually undergoes a degenerative process causing the death of bone cells. The femoral head becomes flat, fragile and no longer fits into the acetabulum. The condition ultimately ends in the wearing of the femoral head under the pressure of the body weight causing irreversible osteoarthritic changes of the hip joint.

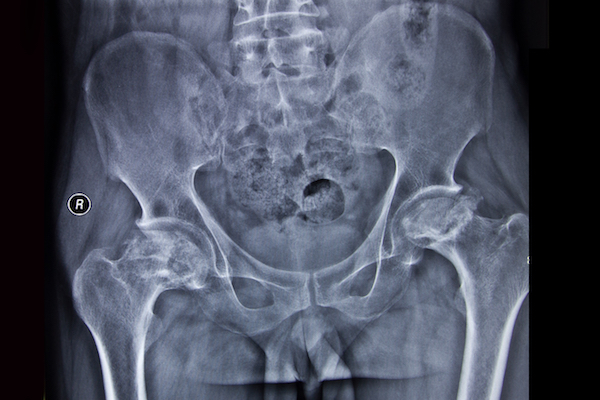

Bilateral hip avascular necrosis. Note the flattened femoral heads and loss of bone material

Classification

The severity of avascular necrosis of the hip is defined using the Steinberg classification, which has been extended, from the Ficat classification. This includes six stages of avascular necrosis from normal to advanced degenerative changes based on the MRI scans of the hip joint.

Stage  Radiographic findings

0        Normal

I         Normal – minor osteopenia (bone loss)

II        Cystic/sclerotic changes

III       Crescent sign (imminent subchondral collapse)

IV       Flattening of femoral head

V         Narrowing of the hip joint

VI        Advanced degenerative changes (A-mild, B-moderate, C-severe)

Left: Distal radius intraarticular, displaced fracture; Middle: Older distal radius fracture with callus formation; Right: Distal radius and ulna fracture, extraarticular and displaced

No 2.

Intra-articular fracture extends to the wrist joint (or articulation)

Extra-articular fracture is located outside of the wrist joint

Open fracture when bone fragments perforate the skin

Comminuted fracture when the bone breaks into multiple fragments

Non-displaced when the anatomical alignment of the bone is maintained or displaced when the bone fragments move apart.

Melone’s classification describes the characteristics of intra-articular fractures of the radius:

i    Stable fracture

ii    Unstable "die-punch"

iii   "Spike" fracture

iv Split fracture

v   Explosion injuries

Acetabular fracture of the pelvis

Acetabular fractures

These fractures are divided into:

Anterior pillar (not weight bearing part of joint)

Posterior pillar (often associated with dislocation of the hip including the weight bearing part of joint)

Transverse

Comminuted involving both column type

Sacral / coccygeal fractures

The sacrum is a triangular-shaped bone formed by 5 fused vertebrae, which provide a posterior wall to the pelvic ring. At each side of the sacrum, the ala structures articulate with the ilium bones forming the sacro-iliac joints. Sacral fractures are usually parallel to the spine and can involve the ala. Less frequently sacral fractures may display an “H” shape, including a transversal fracture uniting both sides of the sacrum. Three zones are described where sacral fractures can occur that are along vertical lines relative to the alignment of the foramina. Sacral fractures may result in sacral instability and require treatment via sacroplasty (injection of bone glue into the fracture). Surgery is necessary in case of associated neurological symptoms.

Fractures of the coccyx involve the tailbone, the terminal portion of the spine situated below the sacrum formed by 3 to 5 fused vertebrae. Coccyx fractures occur when falling on a seated position. They are more common in elderly women and seldom require surgical treatment.

A fractured femoral head seen intraoperatively and via a CT scan image

Causes

The origin of this pathology is not always clear and is defined as idiopathic, when arises spontaneously and the causes are unknown. It may also due to venous thrombosis, hypertension, chronic use of medications (e.g. corticosteroids), treatments (radiation) and preexisting autoimmune or blood conditions.

Other causes leading to avascular necrosis of the hip may depend on different forms of injuries while others arise from intrinsic vascular changes compromising blood flow to the femoral head.

Trauma includes fractures of femoral head 75-100%, basicervical or femoral head base 50%, cervico-trochanteric head-trochanter 25%

Hip dislocation (2-40%); higher risk with severe displacement and incorrect reduction.

A traumatic event such as a fall from hight increases the risk for a hip avascular necrosis

Risk factors

The development of avascular necrosis of the hip has been attributed to a number of risk factors:

Trauma

Iatrogenic (high dose corticosteroids, radiation, organ transplant)

Idiopathic (most common type: hypercoaguable disorder)

Alcoholism

Blood diseases (leukaemia, sickle cell disease)

Autoimmune diseases (systemic lupus erythematosus)

Alterations in lipid metabolism

Viral and bacterial infections

Pain caused by a hip avascular necrosis is alleviated by reducing weight bearing with crutches

Symptoms

The symptoms of the hip avascular necrosis may manifest at a late stage of the disease with an insidious onset displaying the following characteristics:

Pain to the groin area, buttock and anterior side of the thigh increasing with movement

Pain with weight bearing on the pathological hip side

Pain at rest

Pain during sleep

Stiffness of the hip joint

Difficulty in walking, limp

MRI image of a healthy hip of a young woman

Diagnosis

Clinical examination begins with medical history to acquire information on injuries, preexisting conditions, life style or drugs possibly leading to avascular necrosis of the hip.

Firstly the examiner will assess any changes in the range of movement of the hip, stiffness and abnormalities in the gait such as alimp.

X-ray imaging may reveal changes in the femoral head only when the pathology has advanced. This is improved with a bone scan following the injection of a contrast agent.

In the long term the hip will become typically arthritic, possibly masking the actual diagnosis of avascular necrosis of the hip. An MRI may be recommended in case the X-ray does not show bone alterations despite the clinical symptoms. The MRI is highly specific for the diagnosis of avascular necrosis of the hip showing a brighter femoral head indicative of bone loss, oedema and reduction in size.

Treatment

NSAIDs are the first strategy for conservative treatment of hip avascular necrosis

Nonoperative treatment

Conservative treatment is the initial frontline of therapy following the diagnosis of avascular necrosis of the hip. Before the pathology has advanced to the collapse of the femoral head, conservative management aims at replenishing the bone with calcium via administration of bisphosphonates to prevent the later stages of bone degeneration. However, the reduction in blood flow to the bone itself cannot be restored with medications.

Additional treatment includes:

Pain management with analgesics

Non-steroidal antiinflammatory drugs (NSAIDs)

Reduction of weight bearing on the hip with crutches

Electrical stimulation

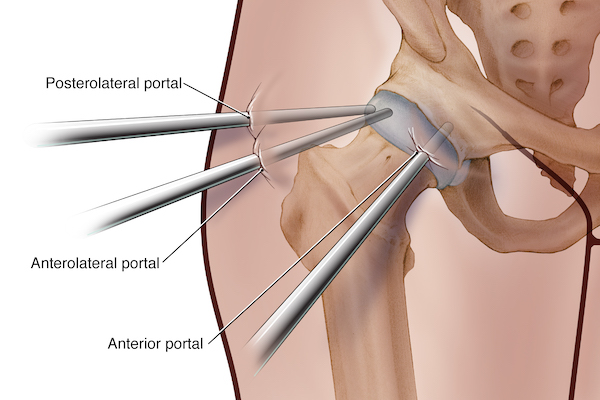

Illustration of a hip arthroscopy

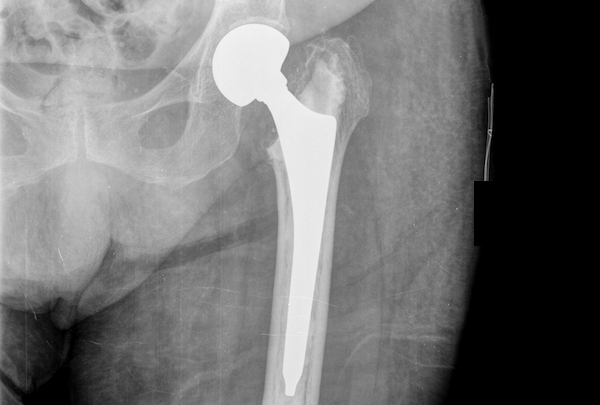

‍X-ray of a total hip prosthesis

Surgical treatment

Prior to the final collapse of the femoral head, the goal of surgery is to restore blood supply to the bone using various techniques.

Hip arthroscopy is used for decompression of the femoral head by drilling one or multiple holes in the head to stimulate angiogenesis (new vessel growth) and reduce the pressure within the femoral head to alleviate pain.

Fibular bone (strut) graft consists in the transplantation of bone fragment taken from the fibula (lower leg) into the femoral head to provide stability. The vessels originating from the fibula are joined with the vessels of the hip to restore blood flow to the femoral head.

Total hip replacement (arthroplasty) with an artificial prosthesis is performed when the hip has fully degenerated and becomes arthritic and cannot be repaired with other surgeries. It is mostly indicated in older patients (see hip fracture for further details on this technique).

Hip resurfacing surgery is a similar technique to prosthetic hip replacement but only a smaller portion of the bone is removed. This procedure is advised in young patients due to the short life span of hip prostheses.

Using crutches is recommended for the rehabilitation of a hip avascular necrosis

Rehabilitation

Physical therapy is slightly different following conservative or postoperative treatment. In both instances it is recommended to reduce weight bearing on the hip temporarily with the use of crutches. This period can last up to 6-12 weeks in conservative patients. Simultaneously, the function of the hip is maintained with gentle exercise focusing on improving joint flexibility and strengthening of the pelvis, glutei and thigh muscles.

The use of crutches or a walker is longer in surgical patients lasting up to 6 months to prevent a fracture of the femur following either a prosthetic implant or a graft procedure.

Physiotherapy also management includes:

Rest

Ice treatment

Antiinflammatory therapy

Exercise in the pool to reduce stress on hips

Stretching

Walking

Climbing stairs

Activity modifying regime

Return to activity plan

Guided return to activity and sport

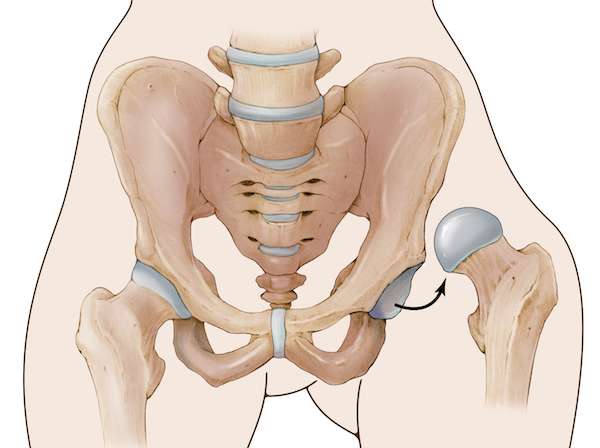

Drawing of a hip dislocation

Complications

A variety of detrimental events can occur following both types of treatment for an avascular necrosis of the hip.

With conservative treatment:

Further femoral head degeneration and collapse

Arthritic changes of the hip joint

Requirement of hip replacement surgery

After surgery:

Infection

Bone fracture (during surgery)

Joint dislocation (after surgery)

Hip joint stiffness

Prosthesis loosening

Vessel or nerve damage

Deep venous thrombosis

Chest infection

Stroke

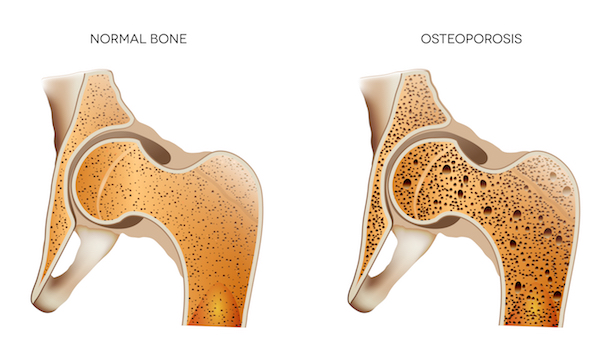

Medications prescribed for treatment of osteoporosis reduce the risk of a hip avascular necrosis

Prevention

Avascular necrosis of the hip cannot be easily prevented if arising from idiopathic causes. However, in patients with chronic medical diseases or prolonged use of steroids and immunosuppressants, a regular assessment of bone quality may be helpful.

A general check-up of patients’ wellbeing for the prevention of cardiovascular events can be achieved by regular monitoring for coagulopathies, high blood pressure (hypertension). Changes in life style involving the consume of alcohol, smoking and lack of exercise may also improve bone health and prevent the onset of avascular necrosis of the hip.

Additional treatments are recommended at the early stages of the disease:

Antiinflammatory drugs (NSAIDs)

Osteoporosis drugs to delay the progression of avascular necrosis

Medications to lower blood cholesterol to prevent fat embolism

Anticoagulant therapy or blood thinners such as warfarin to prevent deep venous thrombosis or clot formation
